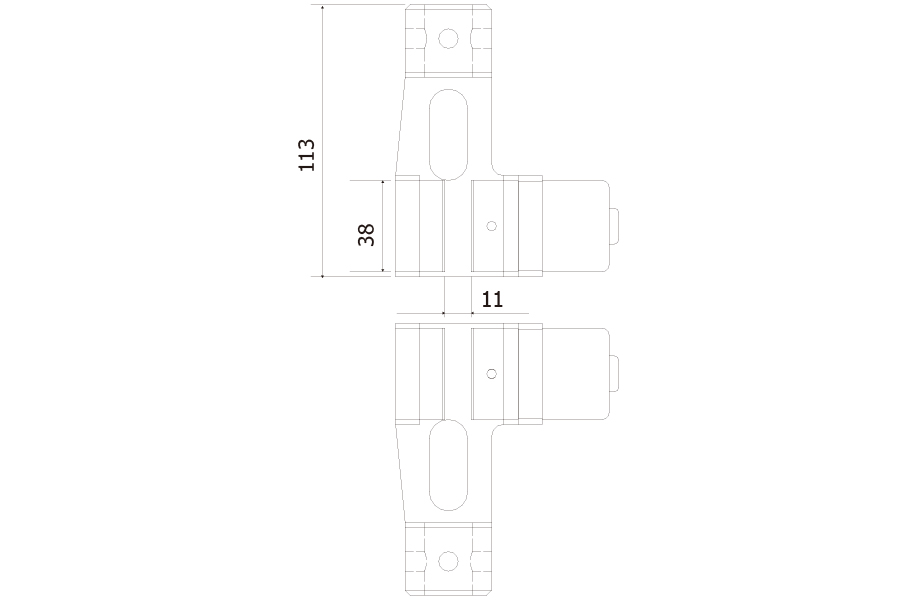

Product Grips H Series GR-H010 Small Pneumatic Plane Grip Inquire this model Description Capacity 100N Jaw face width 30mm Specimen thickness Thickness 0.1~3mm Min. load cell 20N Temp. limit -10~60°C Weight 580g/pc Jaw face type - Material - Industry Rubber thin plate、String materials、Paper specimen Application ASTM D882 Film Tensile Test ASTM D638 Plastic Tensile Test ASTM D412 Rubber Tensile Test
GR-H010 Small Pneumatic Plane Grip Inquire this model Description Capacity 100N Jaw face width 30mm Specimen thickness Thickness 0.1~3mm Min. load cell 20N Temp. limit -10~60°C Weight 580g/pc Jaw face type - Material - Industry Rubber thin plate、String materials、Paper specimen Application ASTM D882 Film Tensile Test ASTM D638 Plastic Tensile Test ASTM D412 Rubber Tensile Test
GR-H010 Small Pneumatic Plane Grip Inquire this model Description Capacity 100N Jaw face width 30mm Specimen thickness Thickness 0.1~3mm Min. load cell 20N Temp. limit -10~60°C Weight 580g/pc Jaw face type - Material - Industry Rubber thin plate、String materials、Paper specimen Application ASTM D882 Film Tensile Test ASTM D638 Plastic Tensile Test ASTM D412 Rubber Tensile Test
