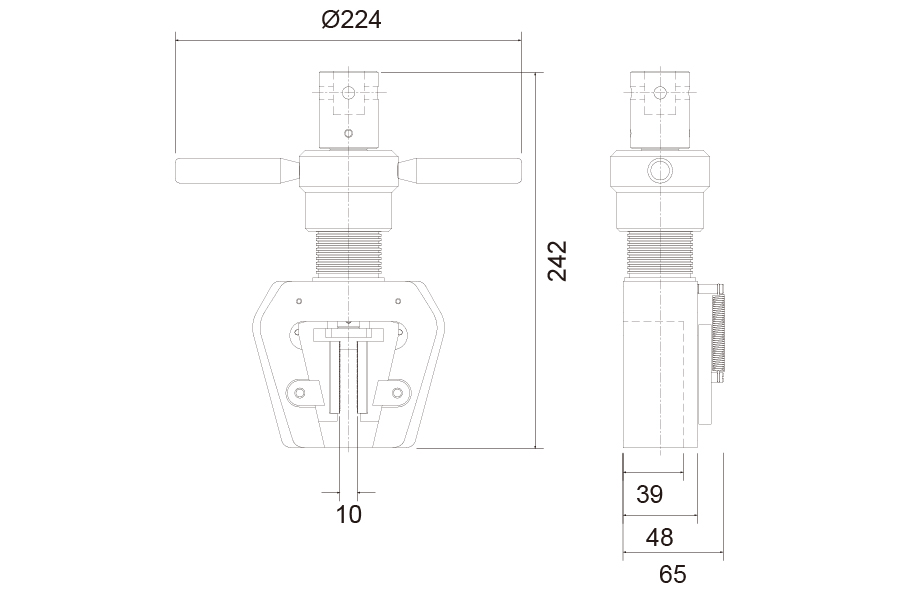

Product Grips F Series

GR-F010

Wedge Grip

Inquire this model

Description

Capacity

10kN

Jaw face width

30mm

Min. load cell

1kN

Temp. limit

-10~200°C

Weight

5375g/pc

Specimen Size

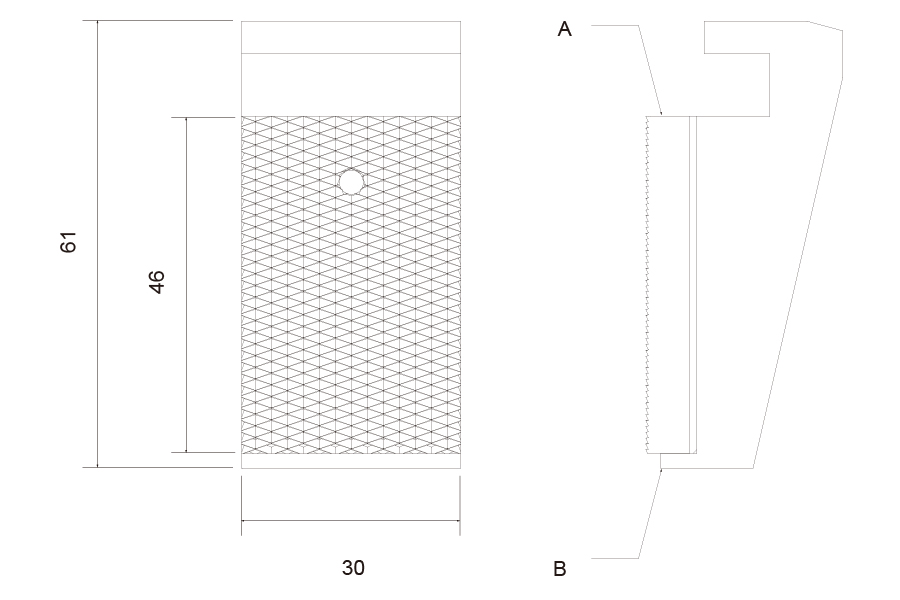

Grip Surface A: thickness 0.1~10mm

Grip Surface B: thickness 9~18mm

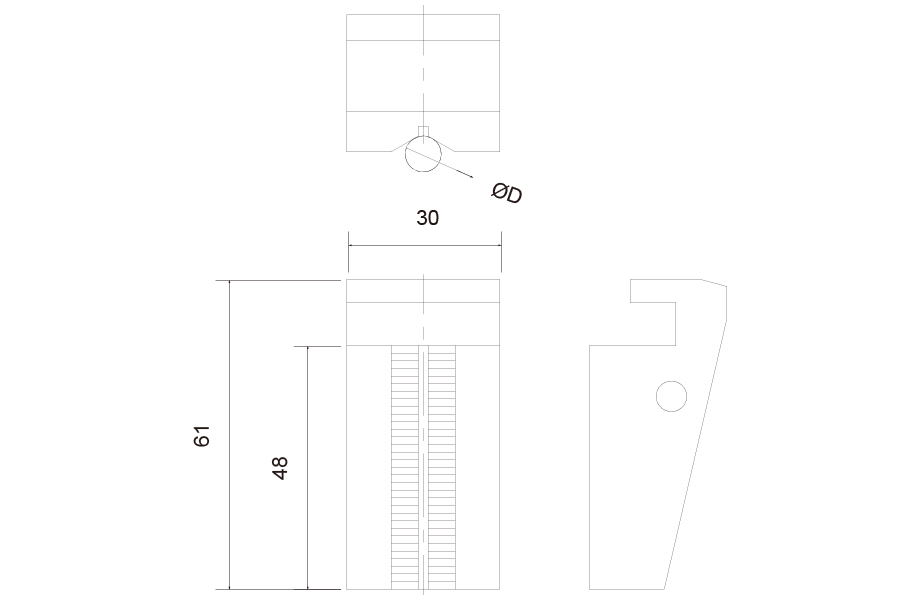

Grip Surface F: diameter Ø 6~14mm

Grip Surface G: diameter Ø 13~20mm

-

-

Industry

A/B suited for metal films、metal wire、plastic、high tension materials。
F/G suited for metal round bar､plastic round bar、round bar or tube specimen

Application

ASTM D638　 Plastic Tensile Test
