Product Grips F Series

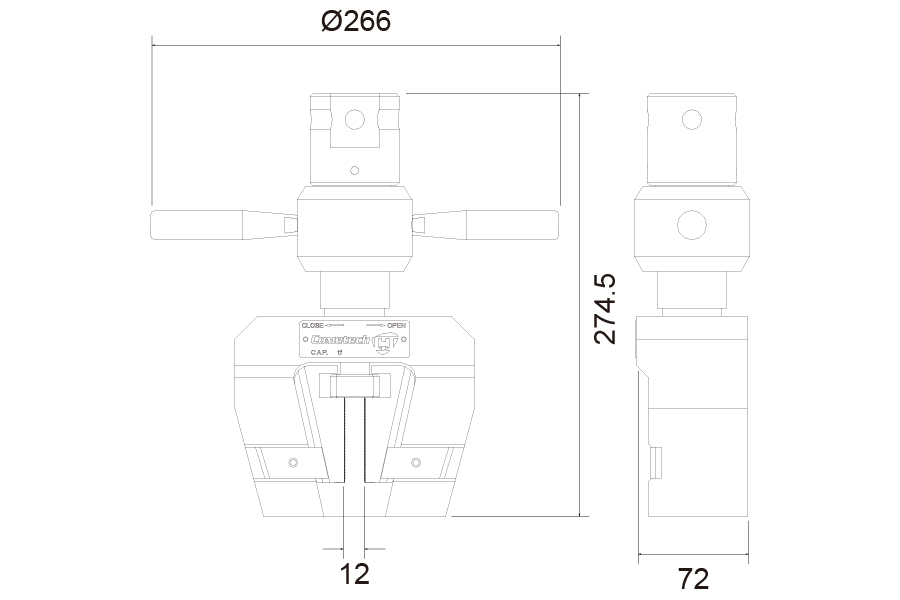

GR-F020

Wedge Grip

Inquire this model

Description

Capacity

50kN

Jaw face width

40mm

Min. load cell

5kN

Temp. limit

-10~200°C

Weight

10163g/pc

Specimen Size

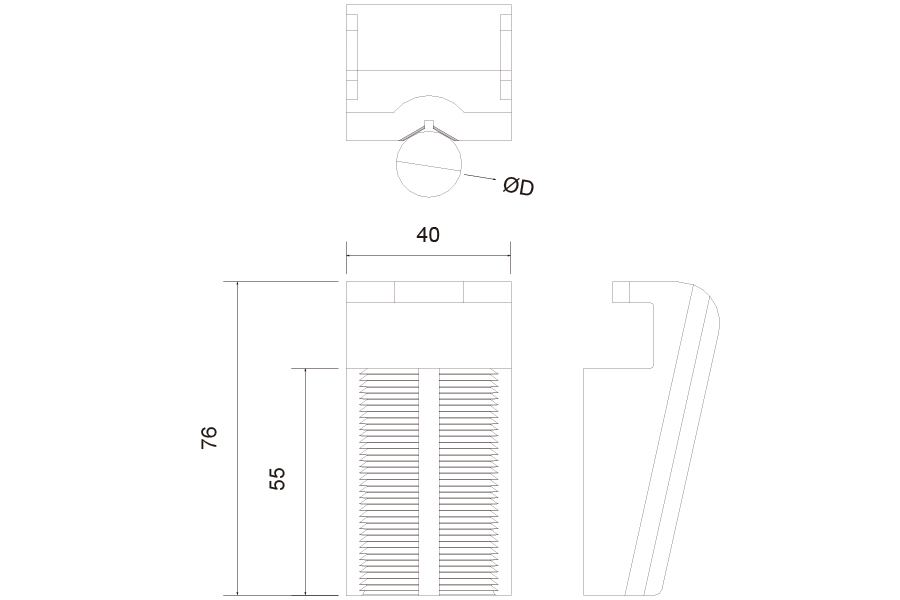

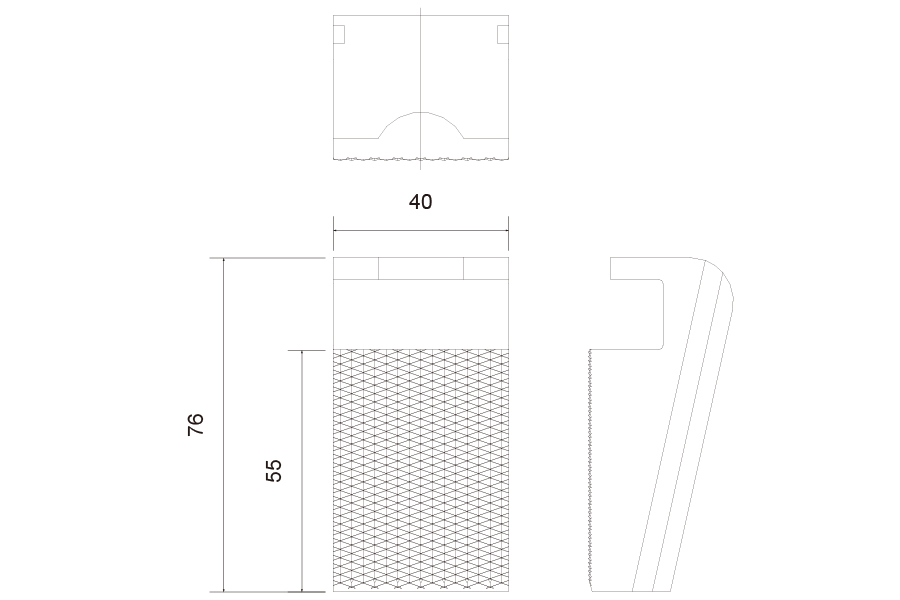

Grip Surface A Thickness 0.2~11mm

Grip Surface B Thickness 10~21mm

Grip Surface F DiameterØ 7~17mm

Grip Surface G DiameterØ 16~26mm

-

-

Industry

A/B suited for hard thread material、board material。
F/G suited for metal round bar、plastic round bar、round bar or tube material。

Application

ASTM D638　 Plastic Tensile Test
