Description

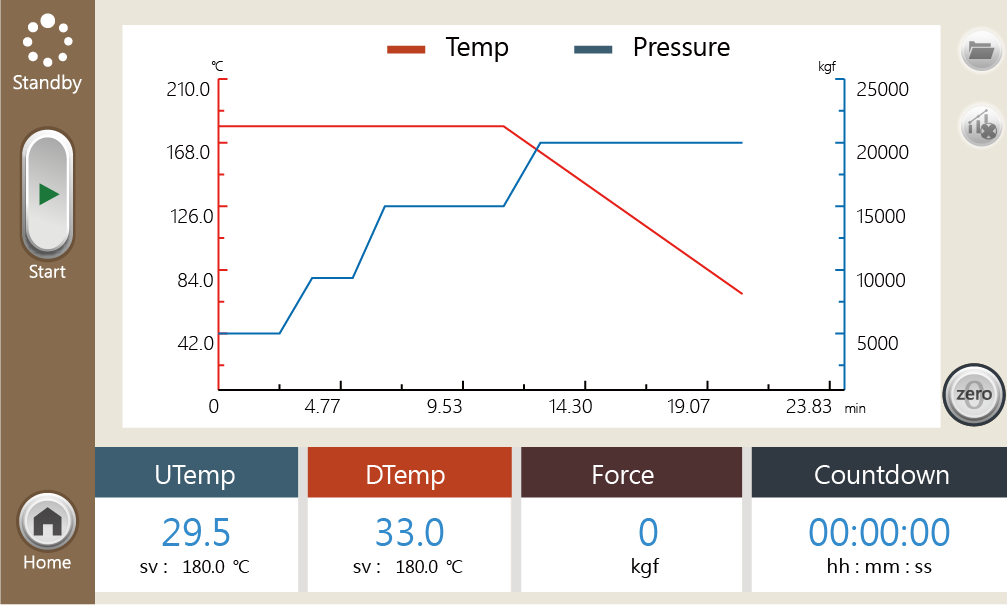

Programmable Hot Press QC-674A can form the plastic or rubber material into a plate by stable pressurizing and heating for preparing development usage's sample, product producing, flattening specimens, etc. The interface of the touch screen is very simple for setting and learning. This machine supports an 8-stage setting for different pressure and compression time, and it makes the specimen be formed more even and reduces the bubbles containing problems. QC-674A especially uses a water cooling system to short the cooling time and improve the molding efficiency. The display can show a double curve graph of pressure and temperature for better controlling the force, time and temperature change during the molding processes. For multiple applications, this machine supports manual mode as well.
Suitable material for molding application: composite fiber hot pressing sample production, silver welding hot pressing sample production, indium powder compression molding, carbon black powder compression molding, powder molding, polymer material molding, microstructural material molding, thermal plastic molding of fluorine materials, ceramic materials, etc.
Industry
Plastic, Rubber
Application
ASTM D790, ISO 178 Bending test
ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test
Applications of Thermo Molding Machine
Catalog Download
QC-674A Programmable Hot Press
Testing Video
Specifications
Capacity
100/200/300/500 KN
Heating Plate Area
300*300mm (Custom sizes are available)
Distance Between Heating Plate
0-150mm
Temperature Range
50~300℃ (400℃ model is optional)
Heating Rate
15±2℃/min (Room Temperature to 250℃)
Cooling Rate
300~100℃:25±5℃/min
Cooling Rate Setting Range
10℃,15℃,20℃,25℃,30℃
Cooling Method
Independent Heat Dissipation For Upper and Lower Heating Plates
Temperature Display Discrepancy
±1℃(Above 300℃±3℃)
Heating Plate Uniformity
200-300℃±2℃
Under 200℃±1℃
Programmable Settings
8 stages
Force Range
Maximum pressure range 10-90%
Force Accuracy
±4%
Force Resolution
0.01KN
Pressure Time
Capable of holding pressure for up to 8 hours
Operation Method
7-inch color touch screen interface for operation
Real-Time Display
Force, Stress, Upper and Lower Heating Plate Temperature, Graph, Time
Accessories
Comes with a standard set of molds for molding 250*250*2mm specimen
Width (W)
100KN-300KN-1170mm
500KN-1190mm
Depth (D)
100KN-300KN-760mm
500KN-780mm
Height (H)
1580mm
Power Consumption
50A
Power Supply
Three phase 220V/50 or 60HZ
Weight
100KN-570KG
200KN-620KG
300KN-650KG
500KN-780KG
Accessories
Forming Mold
Standard forming mold 250 x 250 x 2(thickness) mm. Size can be customized.
Cutter (A type)
(Optional) Standard cutter or customized cutter.
Cutter (B type)
(Optional) Standard cutter or customized cutter.
