Description
QC-121M2F is used to test the compression strength of large packaging materials such as cartons, foam, styrofoam, etc. It can measure the capacity and deformation of samples under compression, which is a key point for logistics and warehouse management. The QC-121 machine uses 3-point force measurement, which increases the accuracy of force sensing. The upper platen can be adjusted to be fixed or swiveled to meet the standard requirements.
The machine features a standard 7-inch color touch display panel, which allows real-time display of curve graphs and related data simultaneously. With the optional software, users can analyze, export, and manage data efficiently.Moreover, it offers the flexibility to configure two or more test speeds, resulting in reduced operation time.
Conform to Standards
- ASTM D4169
- ASTM D642
- ISO 12048
- ISO 2872
- DIN 55440-1
- GB/T T4857-4
- GB/T 16491
- JIS Z0403-2
- JIS Z0212
- TAPPI T804
Industry
Paper、Food、Beverage、Package
Application
ASTM D642、TAPPI 804 Box Compression test
Catalog Download
QC-121M2F Box Compression Tester
Testing Video
Box Compression Test
Specifications
Model
QC-121M2F
Test Space
A：100 x 100 x 120 cm
B：120 x 120 x 120 cm
C：100 x 100 x 120 cm
D：120 x 120 x 120 cm
Max Capacity
A, B Type：2,000kg(20kN)
C, D Type：5,000kg(50kN)
Platen Type
Fixed / U-joint
(Adjustable)
Units
Force：gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure：Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution
31 bits
Force Precision
±1% (with range 5~100% load cell capacity)
Stroke Resolution
0.0001mm
Speed Range
High Speed Mode:0.2~375.0mm/min
Low Speed Mode:0.0001~2.0mm/min
Speed Precision
±1%
PC-Port
RJ45(TCP/IP) [Software is optional]
Data Sampling Rate
Max. 1200Hz
Motor
Servo Motor
Hardware Protection
Upper/ Lower limit, Emergency stop button
Power
A: Single Phase 220V, 5A
B: Single Phase 220V, 5A
C:Single Phase 220V,7A
D:Single Phase 220V,7A
Dimension (WxDxH)
A:152 x 100 x 196 cm
B:172 x 120 x 196 cm
C:152x 100 x 196 cm
D:172 x 120 x 196 cm
Weight
A:800 kg
B:985 kg
C:840 kg
D:1020 kg
Accessories
Display (optional)

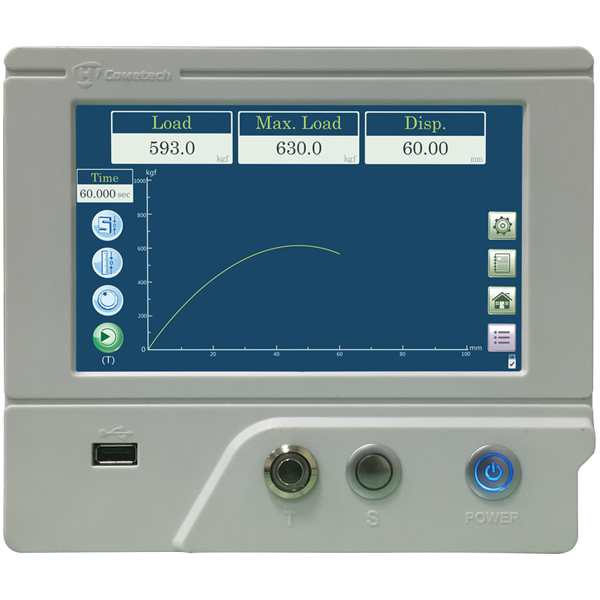

-7" color touch TFT display panel is used
-Chinese, English, Japanese are supported
-Displays force, pressure, displacement and time
-Supports test speed, direction, auto-return, stop at the break point as test conditions
-Can analyze max. force, interval force, force at break point, and so on
-Can calibrate with stand-alone mode
-Provides multiple stop condition settings including force, displacement, and time
-Restore the machine to factory setting is available
-Can choose hardware, test, units, data, protection, curve settings.
-Supports switching between Metric and Imperial units.
-Supports over travel, overload, overtime stop protection settings
-Can save up to 50 test results; it also supports saving to USB

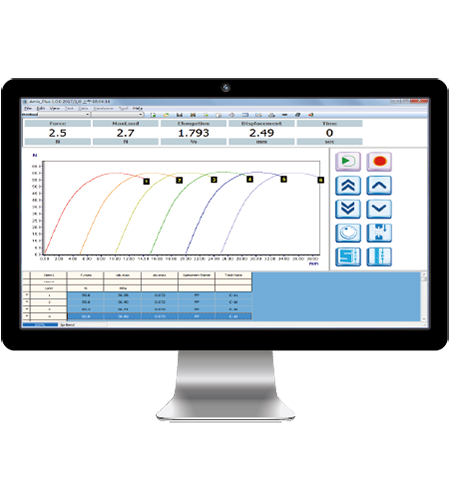

Software functions
-The data sampling rate is up to 1200 Hz
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip
-Windows system required
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available
-Operation Mode: TCP/IP two-way transmission to connect with PC
-Can import multiple test data and display at the same time
-Supports Metric and Imperial units switching
-Provides a flexible table for data analysis
-Can name the data results and create a user-defined formula
-Data can be shown through the table, graph, or both
-Data processing: save, import, list, statistical comparison, and so on
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on
-Compression test is available
-Supports over travel, overload, over time stop conditions as machine protection
-Supports various test patterns such as creep, constant compression, test pause, and so on
-Specimen modular design is for easy and quick specimen information setting
-Test condition modular design can reduce man-made setting error
-Supports upper and lower limits for data selection to get the key information
-Can export test reports
-Supports multiple analysis including Max. force, Max. displacement, and so on
