Description
-5.2" touched screen panel, which can show test force, holding time, conversion value, intender type, and so on.
-Motorized control loading, constant and unloading, eliminates error by manual operation.
-Auto calculating and displaying test result, Max, Min, Average and Hardness deviation.
-With software compensation function, no need for mechanical adjustment.
-Available to auto conversion of hardness value, without checking hardness contrast table.
-Available to save 2000 single test results and 1000 group test results.
Conform to Standards
- GB/T 230.2
- JIS Z2245
- EN ISO6508
- ASTM E18
Industry
Hard ally, Surface hardened stell, Copper alloy, Caburized steel, Hard cast steel, Malleable casting, Annealed steel, Hardened steel, Aluminum alloy, Soft steel, Bearing steel
Application
ASTM D790, ISO 178 Bending test
ASTM D256, ASTM D6110, ASTM E23 ,ISO180, ISO 148, EN10045-1, ISO 179, ISO13802 Pendulum Impact Test
Catalog Download

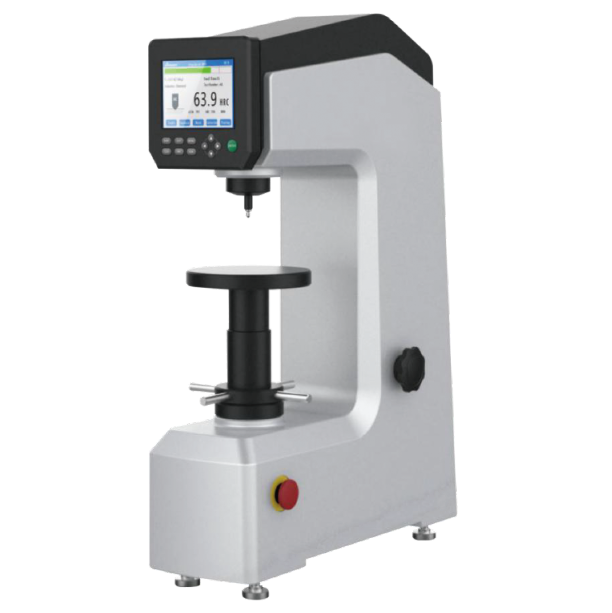

QC-DR3 Digital Rockwell Hardness Tester
Specifications
Preliminary Test Force
10 Kgf(98.1N)
Total Test Force
60 Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scale
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR
Holding Time
1-60s (adjustable)
Value Display
5.2" Touched screen panel
Resolution
0.1HR
Loading Mode
Auto loading / constant / unloading
Conversion Scale
HRC, HV, HBS, HBW, HK, HAR, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB
Language
Chiness, English, German, Portuguese, Turkish, Czech, Korean
Software Correction
-3.0 HR ~+3.0 HR, step value 0.1 HR
Test Space
175mm (max. height); 165mm (depth)
Power Supply
AC 220V/ 50Hz; AC 110V/ 60Hz
Dimension
520 x 215 x 700 mm
Weight
90 Kg
Accessories
Standard Acessories
-Ball Intender: Ø1.588mm steel ball, diamond ball intender
-Test Platform: Ø60mm, Ø150mm, Ø40mm(V-shape)
-Weight: Weight A, Weight B, Weight C
-Standard Hardness Test Piece: HRC(20-33), HRC(57-70), HRB(85-100)
-Other: Tool box, Power cable
Optional Acessories
-Ball Intender: 1/8", 1/4", 1/2"
-Steel Ball: Ø 1/8", 1/4", 1/2"
