Description
QC-636 Drop Weight Tester is suitable for the tests of cushioning material. It is equipped with a standard drop striker weighted 5kg. Normally the drop height is 100cm, which can cause about 50 joules of energy to fall vertically and hit the sample.
This machine can read remaining energy absorbed by the sample be impacted by 50 joules of force. It measures the impact-absorbing capacity of packaging material used to protect personnel and sophisticated items from injury or damage.
Conform to Standards
- EN 1621-1
- EN 1621-2
Industry
Sports, Packaging
Application
ASTM D256, ASTM D6110, ASTM E23 ,ISO180, ISO 148, EN10045-1, ISO 179, ISO13802 Pendulum Impact Test
Catalog Download
Catalogue - Drop Weight Impact Tester
Specifications
Max. Height
210cm
Test Weight
5Kg
Capacity
100J
Force Sensor
Force sensor over 125kN
Minimum precision 1kN
Reflecting frequency over 8KHz
Features
1.Can switch between Impact method A/B.
2.Weight lifting by electric method.
3.Weight controlled by electromagnet under proper safety design.
4.In case of power-off, the weight will not be released and pose a danger.
5.Low-resistant guiding tracks are used for weight movement.
6. Software analyzes the test and displays data.
Accessory
Software
Dimension
84x56x275cm
Accessories

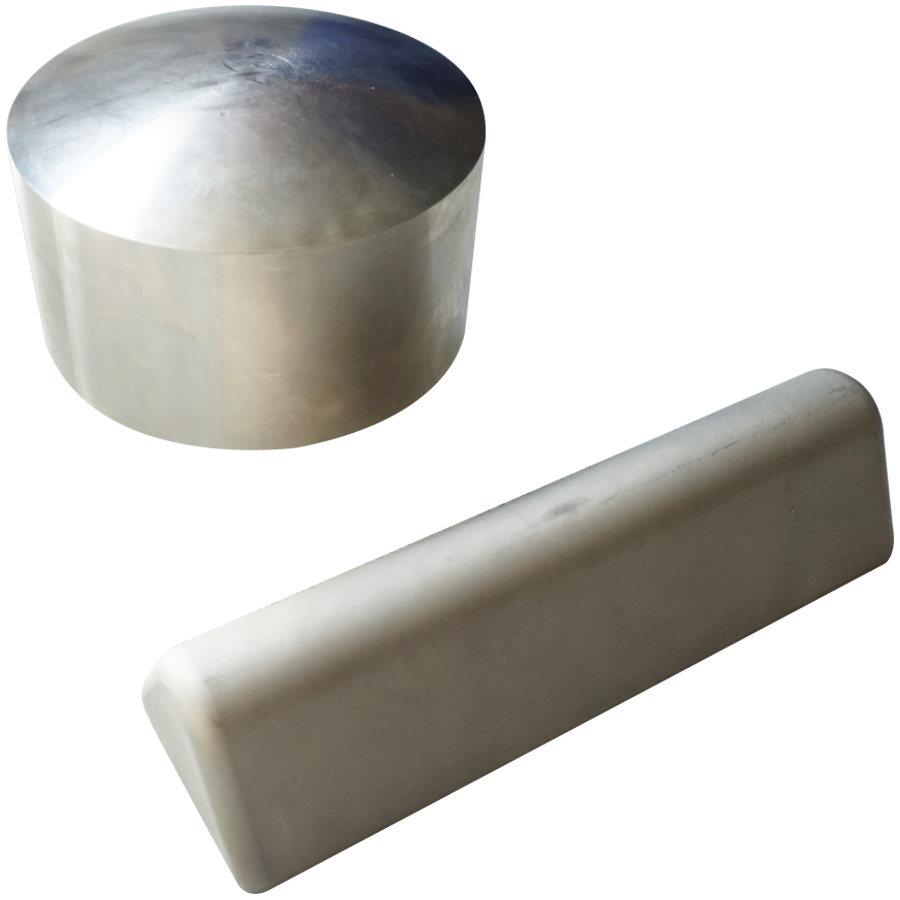

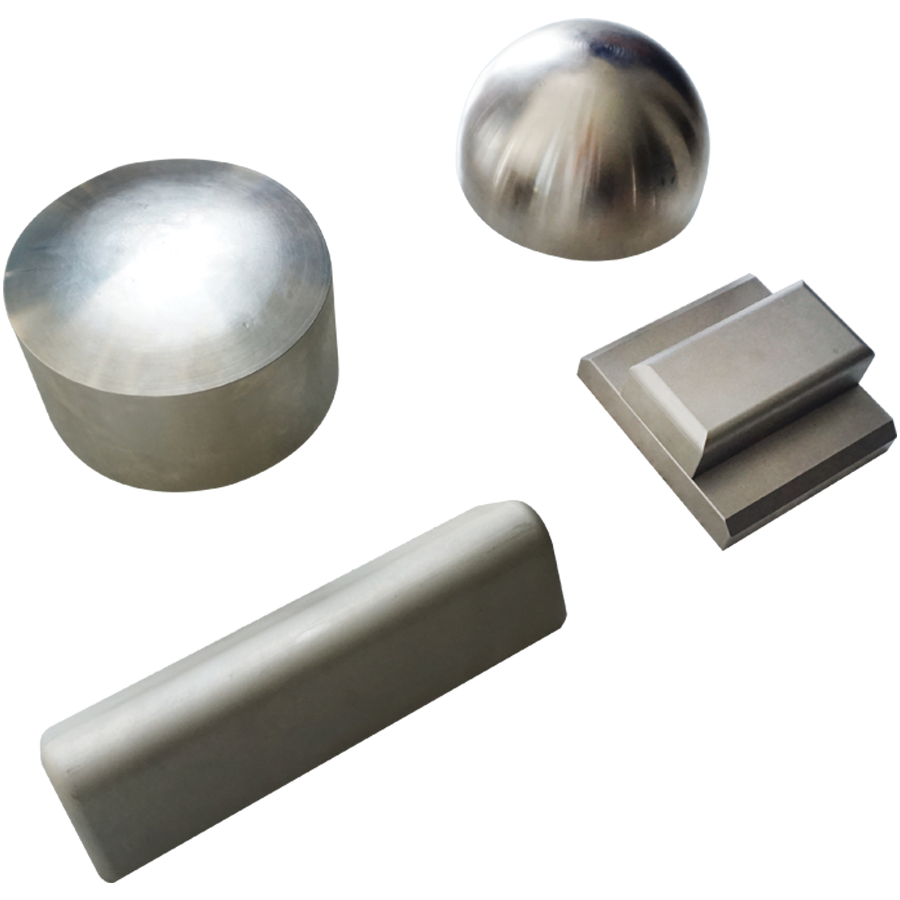

Hammer and Vise
Hammer and vise of EN 1621-1

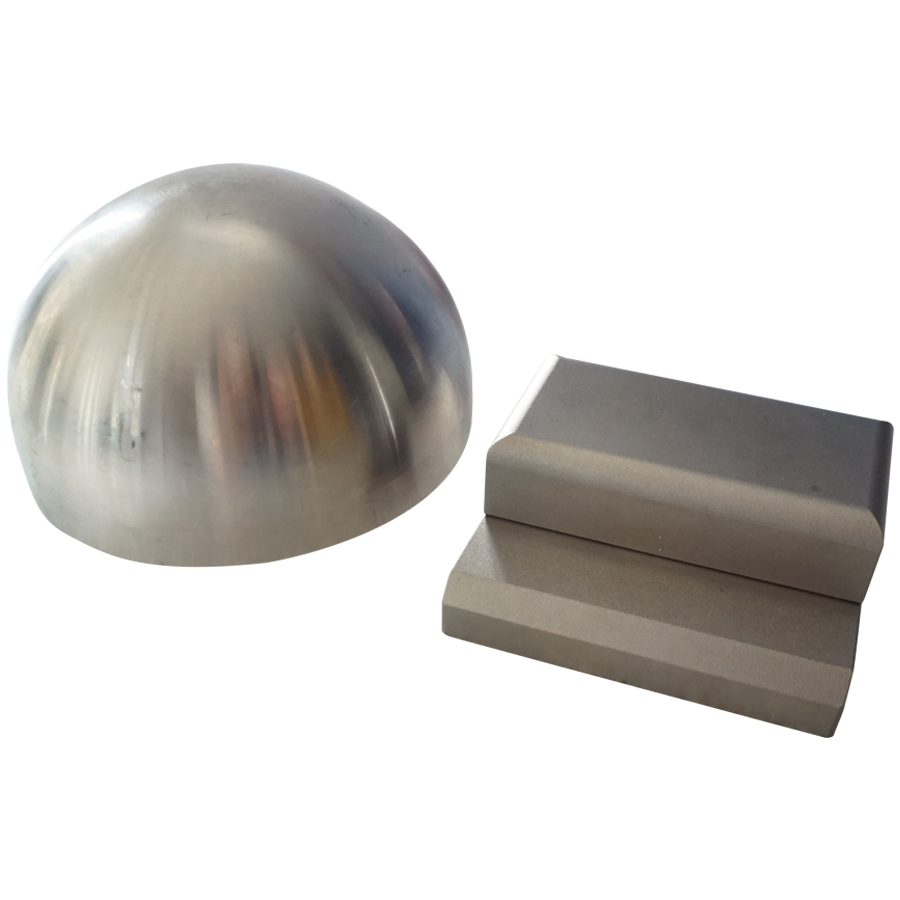

Hammer and Vise
Hammer and Vise EN 1621-2
