Description
This tester can be classified by different test strength; it can test the tear strength of paper, fiber and PVC material. Grip the specimen and use cutter to make a notch. Falling pendulum will use its swing force to tear the specimen and by changing elevation energy of pendulum as specimen tear strength. Meanwhile, the scale will indicate the tearing force. Tearing force is adjustable according to specimens’ strength.
Conform to Standards
- TAPPI T414
- JIS P8116
- ASTM D1424
Industry
Textile, Paper, Packaging
Catalog Download

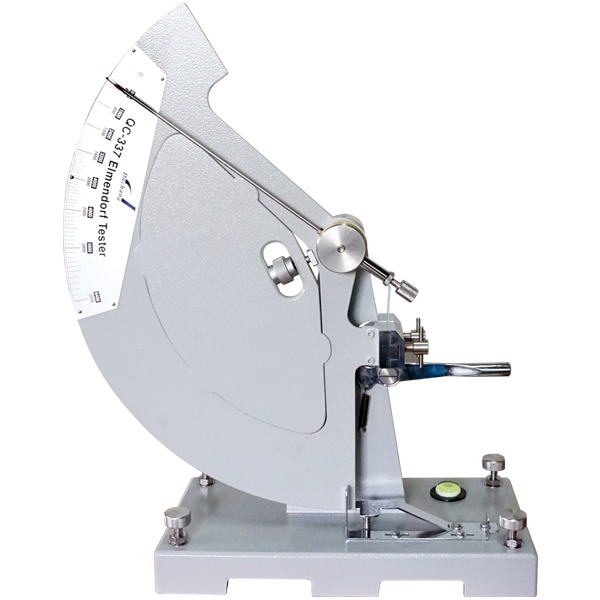

QC-337 Elmendorf Tearing Strength Tester
Testing Video
Specifications
Model
QC-337
Specimen size
63.5 × 100 mm
Capacity
16N / 32N / 64N (Capacity changeable)
with counterweight
Dimension
42 × 23 × 50 cm
Weight
21 kg
