Description
-Auto platform lifting, auto load-change, auto loading/unloading, auto calculation, auto testing.
-5.2" touched screen panel, which can show test force, holding time, conversion value, intender type, and so on.
-Auto calculating and displaying test result, Max, Min, Average and Hardness deviation.
-Available to functions: upper and lower limit, data analysis for chart, single data test and group data test
-With software compensation function, no need for mechanical adjustment.
-Available to auto conversion of hardness value, without checking hardness contrast table.
-Available to save 2000 single test results and 1000 group test results.
Conform to Standards
- GB/T 230.2
- JIS Z2245
- EN ISO6508
- ASTM E18
Industry
Hard ally, Surface hardened stell, Copper alloy, Caburized steel, Hard cast steel, Malleable casting, Annealed steel, Hardened steel, Aluminum alloy, Soft steel, Bearing steel
Application
ASTM D790, ISO 178 Bending test
ASTM D256, ASTM D6110, ASTM E23 ,ISO180, ISO 148, EN10045-1, ISO 179, ISO13802 Pendulum Impact Test
Catalog Download

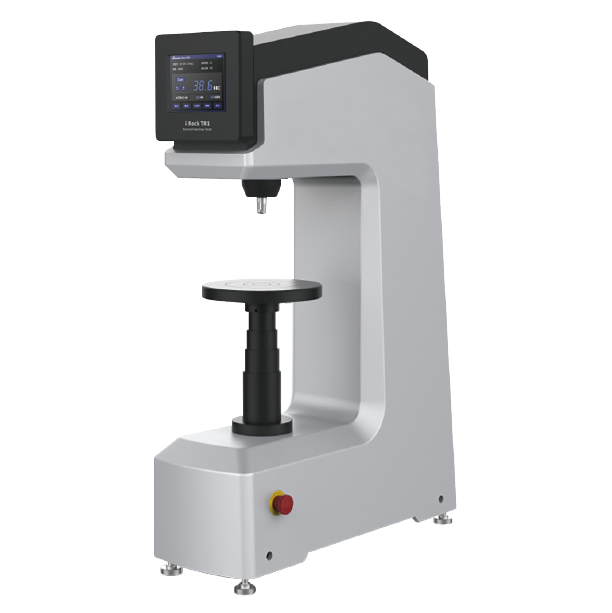

QC-DR1 Full-Auto Rockwell Hardness Tester
Specifications
Preliminary Test Force
10 Kgf (98.1N)
Total Test Force
60 Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scale
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Holding Time
1-60s (adjustable)
Value Display
5.2" Touched screen panel
Resolution
0.1HR
Loading Mode
Auto loading / constant / unloading
Conversion Scale
HRC, HV, HBS, HBW, HK, HAR, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB
Language
Chiness, English, German, Portuguese, Turkish, Czech, Korean
Software Correction
-3.0 HR ~+3.0 HR, step value 0.1 HR
Data Processing
Line chart analyzing for 2000 group single data; providing single/ group data viewing
Test Space
280mm (max. height); 170mm (depth)
Power Supply
AC 220V/ 50Hz; AC 110V/ 60Hz
Dimension
620 x 210 x 900 mm
Weight
125 Kg
Accessories
Standard Acessories
-Ball Intender: Ø1.588mm steel ball, diamond ball intender
-Test Platform: Ø60mm, Ø200mm, Ø40mm(V-shape)
-Weight: Weight A, Weight B, Weight C
-Standard Hardness Test Piece: HRC(20-33), HRC(57-70), HRB(85-100)
-Other: Tool box, Level, Dust cover, Power cable
Optional Acessories
-Ball Intender: 1/8", 1/4", 1/2"
-Steel Ball: Ø 1/8", 1/4", 1/2"
-Test Platform, Intender protector, Software
