Description
Put 1 piece test specimen on the platform. Stick another piece of test specimen with a weight, then put the specimen onto the surface of the first specimen which is already on the platform. Let platform angle go up until the weight slides down. Get the Tangent Value from initial slide angle of the machine. The Tangent Value represents the surface static friction coefficient of the specimen. Motor type tester increases angle at a stable speed and stops automatically when test ends.
Conform to Standards
- ASTM D202
- TAPPI T815
Industry
Textile, Sports, Medical
Catalog Download
QC-117/QC-117A Manual/Motor Coefficient of Friction Tester
Testing Video

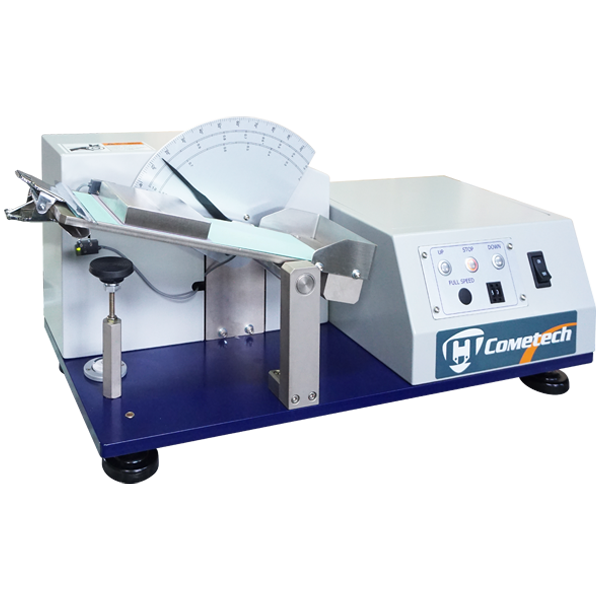

QC-117A Motor Coefficient of Friction Tester
Specifications
Model
QC-117A
Type
Motor
Specimen Size
Max. 120 x 300 mm
Weight Size
1300g(90x100mm)、700g (Ø50x45mm)
Degree Per Turn
N/A
Speed
0.5 - 5 degree/sec (adjustable)
Stop Condition
Controlled by sensor (automatic)
Display
Angle meter with min. scale 1 degree (°)
Test Angle Range
0 - 60 degree
Weights (optional)
ASTM 235g(76x63mm)
ASTM 200g(63.5x63.5mm)
JIS 150g/200g(75x35mm)
Dimension
73x35x30 cm
Weight
40kg
Related Machines

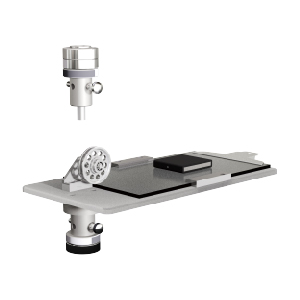

Related Grips
