Description

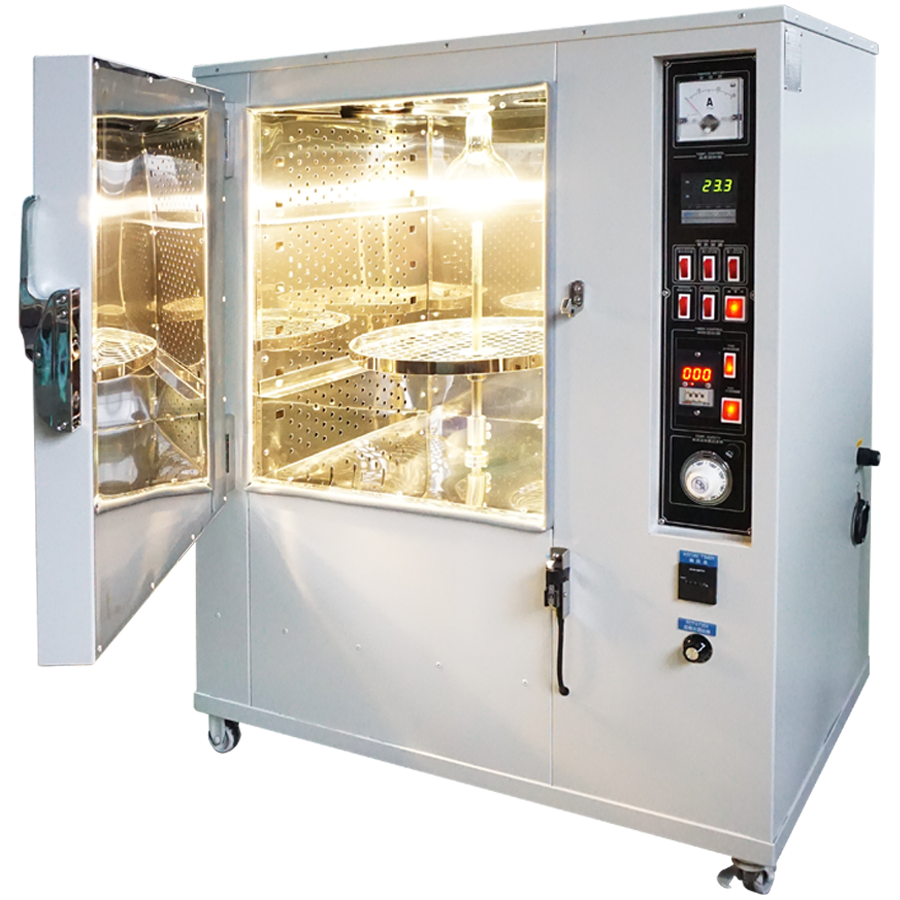

The QC-609A Discoloration Tester has oven, aging and anti-yellowing functions. A 300W UV lamp is installed inside the oven to simulate the fading or discoloring of sample caused by radiation of sunlight or the high-temperature environment in containers during transportation.
The QC-609B Discoloration Tester (Simple Type) uses two 15W light tubes as test irradiation source to see sample change condition through ultraviolet ray.
Industry
Plastic
Catalog Download
QC-609A Discoloration Tester
Specifications
Model
QC-609A
Inner Chamber Size
50×50×60 cm (W×D×H)
Temperature Range
Normal 5℃ ~ 260℃ (generally 50℃)
Control Method
Electric digital temperature controller (with dual thermos protector)
Temperature Display
0.1℃
Timer
0~999 hours, manual setting, digital display, automatically stop heating
Rotary Speed of Turning Table
1~10 r.p.m. (adjustable)
UV Irradiance Level
Type of bulb OSRAM 300W. With counter for bulb’s life. Life cycle for each bulb is about 1,000 hours.
Accessories
Two pieces of shelves, adjustable height
Internal Material
SUS #304 stainless steel
Outer material: high-quality paint baking
Dimension
85×70×128cm (W×D×H)
Power Supply
Single phase, 220V/50Hz or 60Hz
Weight
100 kg
Attachment
One Warranty card, one instruction manual.
