Description

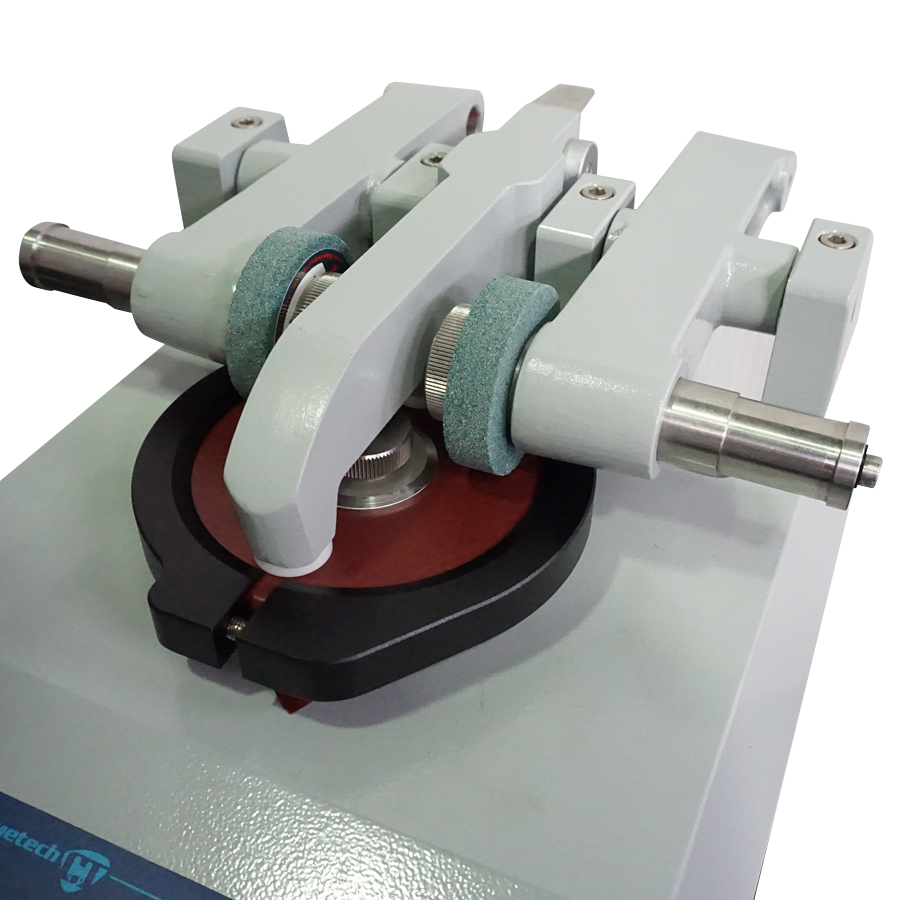

Abrasion Tester (Abrader) is mainly composed of one specimen clamping disk, two grinding wheels and two vacuum nozzles. Abraser's Specimen clamps with two wheels above the disk can be combined with different load weights on specimens. Set the test revolutions for machine working, and during the test the nozzles will suck the dust generated by the wear-out process.
The Abraser conforms to abrasion test such as ASTM D3884, ASTM D4060, ASTM D1044, ISO 5470; suitable for various materials including paper, cloth, panel, carpet, glass, rubber, plastic and other materials.
Conform to Standards
- ASTM D3384
- ASTM D1175
- ASTM D1044
- ASTM D4060
- TAPPI T476
- ISO 9352
- ISO 5470-1
- JIS K7204
- JIS A1453
- JIS K6902
- JIS L1096
- JIS K6964
- DIN 52347
- DIN 53109
- DIN 53754
- DIN 53799
Industry
Rubber, plastic, textile, cloth, paper and construction material
Application
Abrasion Test
Catalog Download
QC-619H Abrasion Tester
Specifications
Grinding Wheel
Diameter 2 inch, thickness 1/2 inch
Disk Rotary Speed
5 - 100 rpm ± 2% RPM, adjustable (Factory setting 60 RPM)
Weight sets
250g, 500g, 1000g
Counter
Digital display, 1-99,999,999 with auto-stop
Sample size
Ø110 mm, center hole Ø7.5 mm
Thickness: 1 - 6 mm, soft and rigid material available
Dimension
55 × 38 × 47 cm
Weight
30 kg
Power
Single phase, 100 ~ 240V ; 50/60 Hz
Accessories
Mat, nut
Sandpaper
Cutter
Grinding wheels
Load weights
Wrench
