Description
Universal Testing Machine QC-500M2F is with capacity 500kN or over.
The rigid and endurable structure of the universal tensile testing machine makes the test more stable and reduces damages to the machine, commonly applied to metal, composites, construction material, and other materials that require high test force.
Equipped with Cometech’s advanced M2F controller system, the UTM can perform creep, constant compression, cycle, multi-step test mode, which conforms to various tensile, compression, bending, peeling, and compression tests.
This tensile testing machine series adopts a high torque servo motor to support its movement and motive power. To reduce the maintenance problems, the machine has high rigidity and strength of the construction. It not only provides users a quiet testing environment but also high precision test results. It's a series applies to metal, composite, construction material, and other materials with high test force.
The universal tensile testing machines are all equipped with a jog to control precise positioning and up/down forward movement to prevent overload during the load cell calibration. The optional display can support stand-alone operation with simple tests.
Conform to Standards
- ISO 7500-1
- ASTM E4
- DIN 5122
- JIS B7721
- JIS B7733
- BS EN 1002-1
- BS 1610
- GB/T T228
Industry
Plastic, Textile, Metal, Construction and others
Catalog Download
QC-500M2F Universal Materials Testing Machines
Testing Video
Specifications
Max. Capacity
500kN
Force Resolution
1/100,000(31 bit)
Test Stroke(w/o grip)
1500mm
Speed Range
0.0002-330mm/min
Data sampling rate
Max.1200Hz
Motor
Servo Motor
Dimension
155 x 85 x 295 cm
Weight
2350 kg
Feature
1. Designed for creep, cycle, load/strain control, foam testing, possion's ratio, slippage, etc.
2.More than 260 software analysis available
3.Equipped with jog controller to adjust displacement precisely
4.Optional anti-collision function for protecting loadcells
5.Loadcell automatic reading, calibrated without installed on machine
Accessories
Display Panel
-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Supports test speed, direction, auto-return, stop at the break point as test conditions.
-Can analyze max. force, interval force, force at break point, and so on.
-Provides multiple stop condition settings including force, displacement, time and elongation.
-Supports over travel, overload, overtime stop protection settings.
-Can save up to 50 test results; it also supports saving to USB.
-Restore the machine to factory setting is available.
-Can calibrate with stand-alone mode.
-Supports switching between Metric and Imperial units.
QC-551 Long Extensometer
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
Software functions
-The data sampling rate is up to 1200 Hz.
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
-Windows system required.
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports Metric and Imperial units switching.
-Provides a flexible table for data analysis.
-Can name the data results and create a user-defined formula.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
-Tensile, compression, bending, peeling, spring, creep and others are available.
-Supports over travel, overload, over time stop conditions as machine protection.
-Supports various test patterns such as reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, and so on.
-Specimen modular design is for easy and quick specimen information setting.
-Test condition modular design can reduce man-made setting error.
-Supports upper and lower limits for data selection to get the key information.
-Supports multiple I/O ports for the additional test functions.
Related Machines
Related Grips

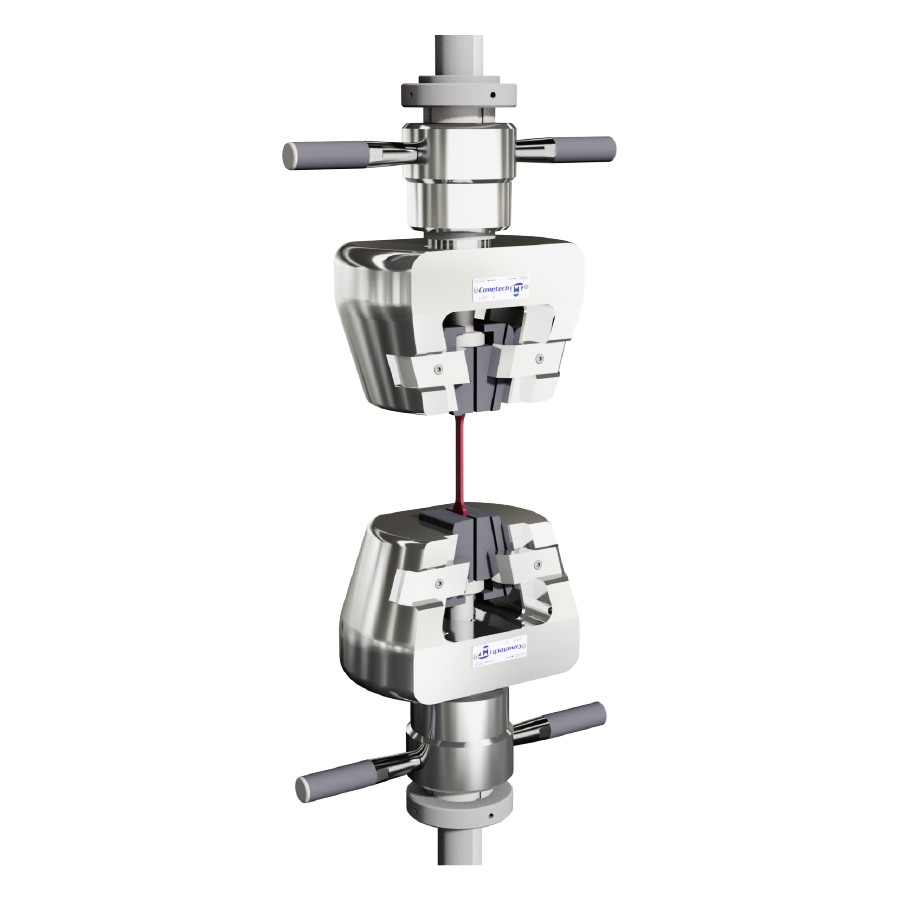

F Series
