QC-508M2F-extended Universal Materials Testing Machines

2~5kN M2F

QC-508M2F
Universal Materials Testing Machines

Send us an Inquiry

Description

Universal Material Testing Machine QC-508M2F has relatively compact size, taking up less space. The universal tensile test machine is equipped with servo motor, ball screw and is suitable for test that requires capacity below 2kN. Test stroke can be adjusted for different dimensions of sample; different sorts of grips such as pneumatic grips, vice grips, yarn grips, are available for diverse tests.

The M2F controller system of the universal testing machines are compatible with the Windows system, and can perform various functions such as tensile (compression) force test, bending test, peeling test, and hold tension (compression). The software operation is simple and easy to learn, with multiple languages, various metric and English unit choices, real-time graph display, and provides complete test analysis data, report planning, complete analysis or archiving after the test is completed. This tensile testing machine can also be equipped with a display for stand-alone operation to capture effective test data quickly.

Conform to Standards

  • ISO 7500-1
  • ASTM E4
  • ASTM D-76
  • DIN 5122
  • JIS B7721
  • JIS B7733
  • BS EN 1002-2
  • BS 1610
  • GB/T 228

Industry

Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Package, Medical, Construction and others

Testing Video


Specifications


Max. Capacity

2 kN

Force Resolution

1/100,000 (31 bits)

Test Stroke(w/o grip)

1100 mm

Speed Range

0.0005-1000 mm/min

Data sampling rate

Max. 1200 Hz

Motor

Servo Motor

Dimension

50 x 53 x 175 cm

Weight

100 kg

Feature

1. Designed for creep, cycle, load/strain control, foam testing, possion's ratio, slippage, etc.
2.More than 260 software analysis available
3.Equipped with jog controller to adjust displacement precisely
4.Optional anti-collision function for protecting loadcells
5.Loadcell automatic reading, calibrated without installed on machine

Accessories

Display Panel

-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Supports test speed, direction, auto-return, stop at the break point as test conditions.
-Can analyze max. force, interval force, force at break point, and so on.
-Provides multiple stop condition settings including force, displacement, time and elongation.
-Supports over travel, overload, overtime stop protection settings.
-Can save up to 50 test results; it also supports saving to USB.
-Restore the machine to factory setting is available.
-Can calibrate with stand-alone mode.
-Supports switching between Metric and Imperial units.

QC-551 Long Extensometer

QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.

QC-557 Short extensometer

QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.

Software functions


-The data sampling rate is up to 1200 Hz.
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
-Windows system required.
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports Metric and Imperial units switching.
-Provides a flexible table for data analysis.
-Can name the data results and create a user-defined formula.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
-Tensile, compression, bending, peeling, spring, creep and others are available.
-Supports over travel, overload, over time stop conditions as machine protection.
-Supports various test patterns such as reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, and so on.
-Specimen modular design is for easy and quick specimen information setting.
-Test condition modular design can reduce man-made setting error.
-Supports upper and lower limits for data selection to get the key information.
-Supports multiple I/O ports for the additional test functions.

Related Machines


Related Grips


A Series

READ MORE
Appearance Name Model Capacity Jaw face width Specimen size Min. load cell Temp. limit Weight Detail
Eccentric Grips GR-A030 2kN 52mm thickness0.2~4mm 200N -10~200°C 1143g/pc

B Series

READ MORE
Appearance Name Model Capacity Jaw face width Specimen size Min. load cell Temp. limit Weight Test angle Detail

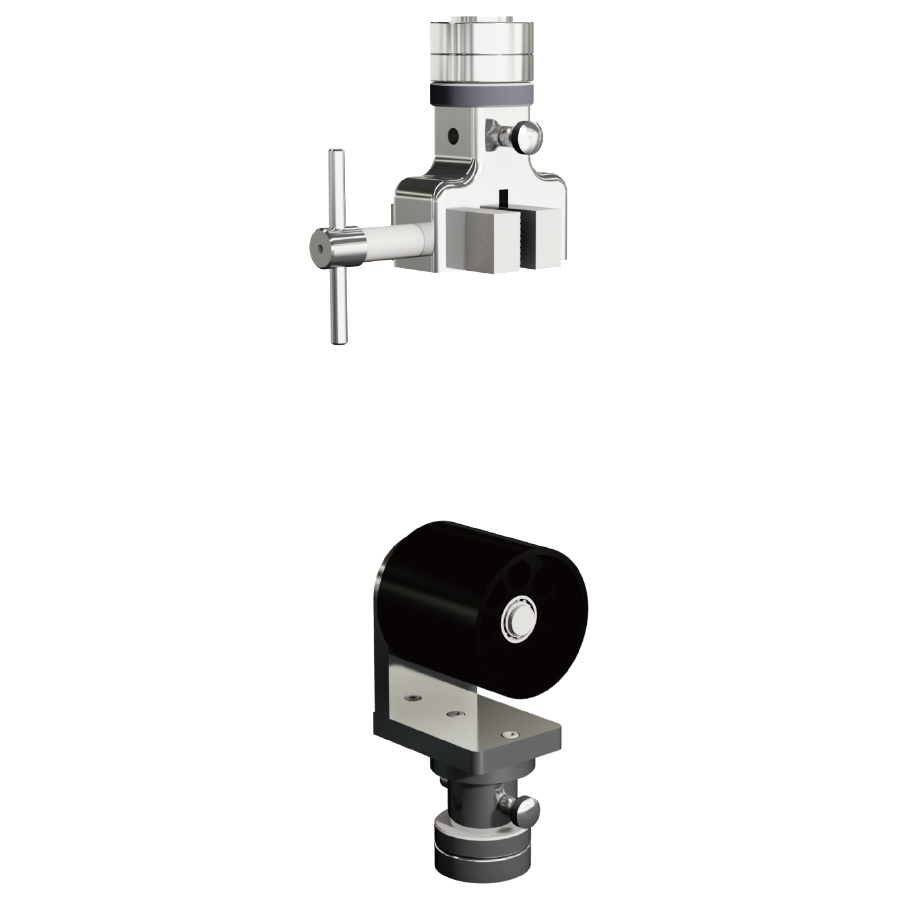

Wheel Peel Grips GR-B02B 500N wheel width75mm thickness0.1~3mm - -10~100°C 1889g/pc -
90° Peel Grips GR-B040 200N 32mm thickness0.01~2mm 20N -10~100°C 1992g/pc 90°
