Universal Material Testing Machine QC-548M2F series are table-top, single-column UTM with max. 5kN capacity. The tensile testing machine provides users a quiet testing environment and high precision test results.
The optional display panel of the tensile machine can operate tests such as tensile, compression and peeling under stand-alone mode. The maintenance-free transmission mechanisms highly reduce the future maintenance problems. The universal tensile tester is equipped with an independent electronic control box which can avoid signal interference and increase the test stability, making it better for future maintenance and update of electronic system.
The manual jog of the tensile tester can increase the accuracy of position and calibration. The high-speed feedback signal reduces the overload risk. The external signals are also acceptable for various machine control modes.
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Package, Medical, Construction and others

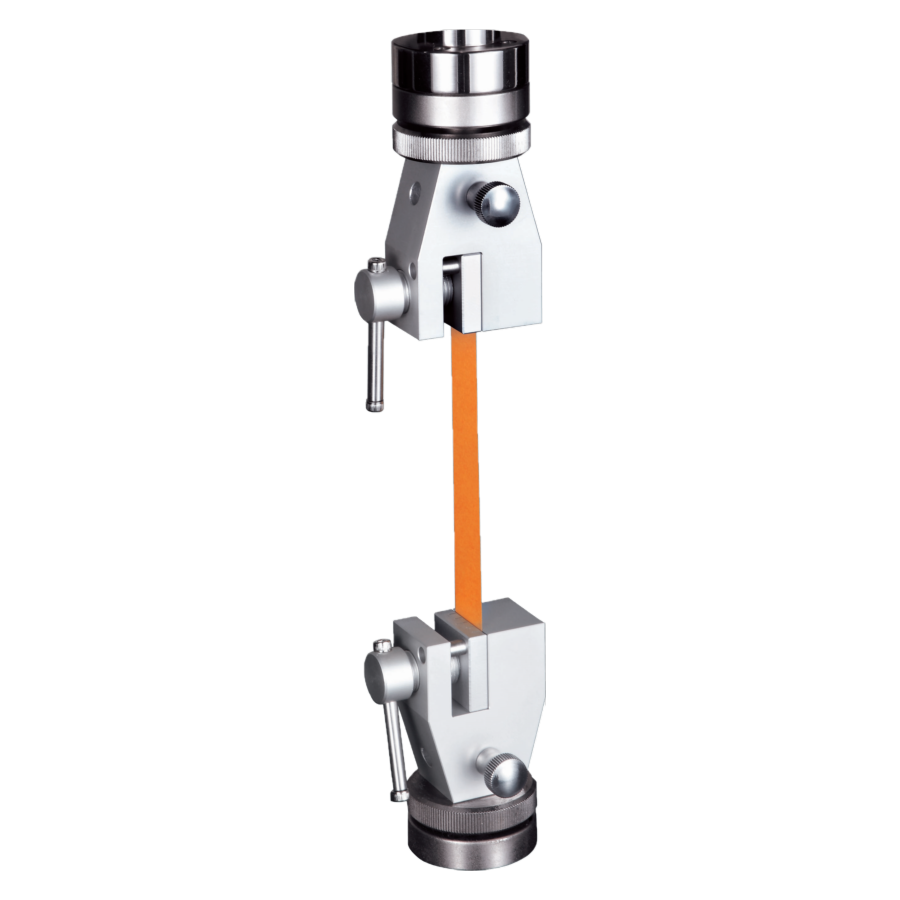

ASTM D882 Film Tensile Test
ASTM D638 Plastic Tensile Test

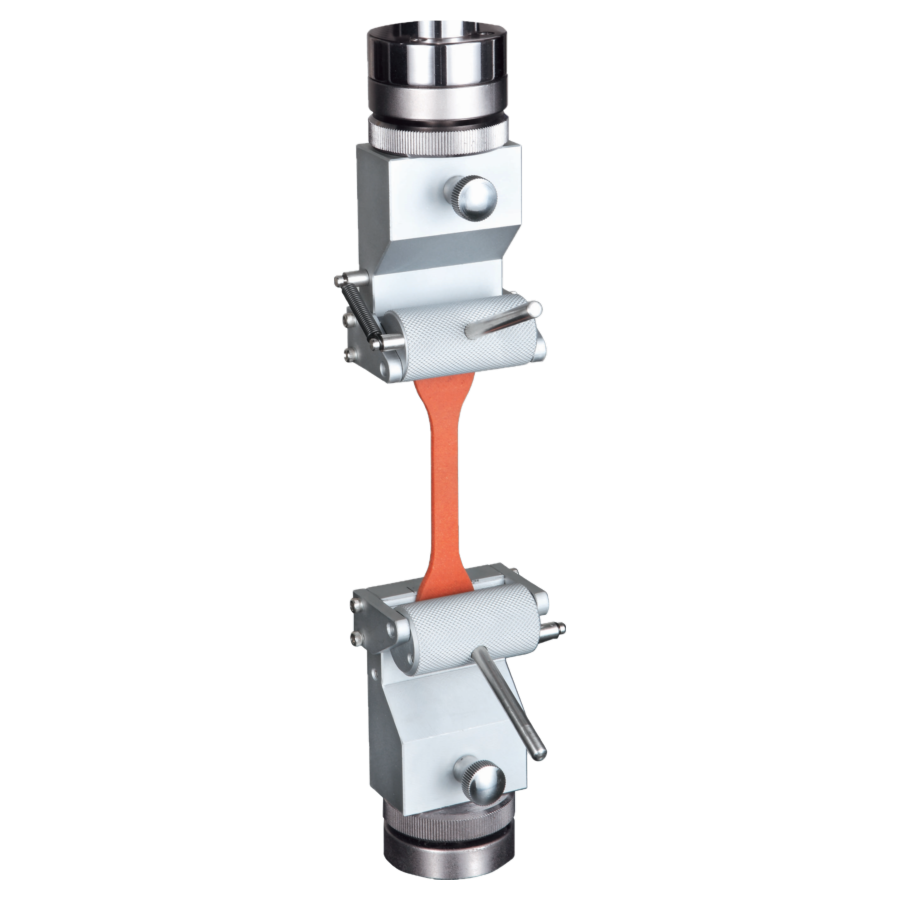

ASTM D412 Rubber Tensile Test
ASTM D1000 ASTM D3330 Tape Peeling Test
ASTM D575 Compression Platen With Displacement Sensor
ASTM D1894 Coefficient of Friction Test

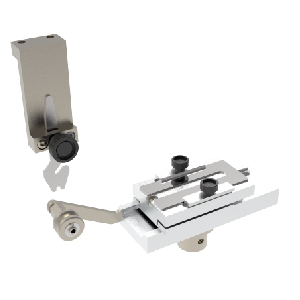

ASTM F1269-13 | IPC TM-650 | MIL-STD-883E | AEC-Q200-006A Die Shear Testing of Electronic Packages
ISO 13934-1 Tensile properties of fabrics
Top Load Testing
Test Solutions for Bottle Industry
Probe Tack Adhesion
QC-548M2F-S Universal Materials Testing Machines
5 kN
32 bits
400 mm
0.001-3000.0 mm/min
2-1200 Hz
400W AC Servo Motor
50 x 50 x 96 cm
70 kg
1. Designed for creep, cycle, load/strain control, foam testing, possion's ratio, slippage, etc.
2.More than 260 software analysis available
3.Equipped with jog controller to adjust displacement precisely
4.Optional anti-collision function for protecting loadcells
5.Loadcell automatic reading, calibrated without installed on machine

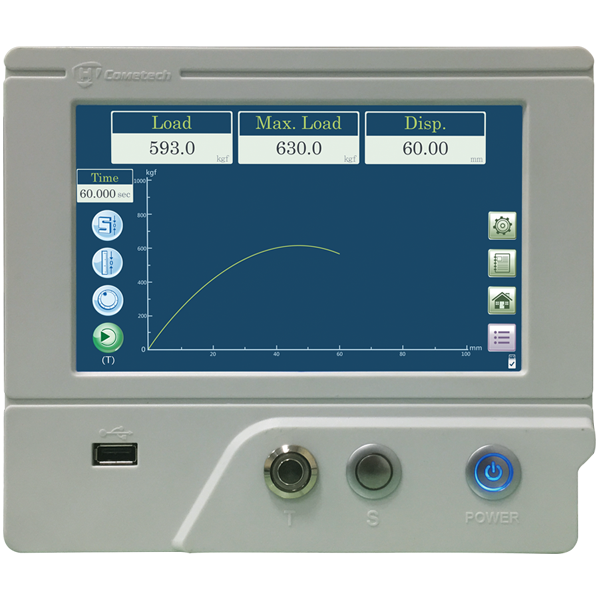

-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Supports test speed, direction, auto-return, stop at the break point as test conditions.
-Can analyze max. force, interval force, force at break point, and so on.
-Provides multiple stop condition settings including force, displacement, time and elongation.
-Supports over travel, overload, overtime stop protection settings.
-Can save up to 50 test results; it also supports saving to USB.
-Restore the machine to factory setting is available.
-Can calibrate with stand-alone mode.
-Supports switching between Metric and Imperial units.
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
-The data sampling rate is up to 1200 Hz..
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
-Windows system required.
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports Metric and Imperial units switching.
-Provides a flexible table for data analysis.
-Can name the data results and create a user-defined formula.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
-Tensile, compression, bending, peeling, spring, creep and others are available.
-Supports over travel, overload, over time stop conditions as machine protection.
-Supports various test patterns such as reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, and so on.
-Specimen modular design is for easy and quick specimen information setting.
-Test condition modular design can reduce man-made setting error.
-Supports upper and lower limits for data selection to get the key information.
-Supports multiple I/O ports for the additional test functions.
