Description
DIN Abrasion Tester is suitable for elastic material, rubber, tires, conveyor belts, transmission belts, shoe soles and software synthetic leather. The specimen of wear area is dia. 16mm which provide the required load and the specimen press on the sand paper wheel. The sand paper #60 will be stuck on 150mm of drum. The drum turns one rotary, the specimen will move 4.2mm. The drum is 40rpm rotated speed. When the specimen of wear distance reaches 40M, it will be stop and measure after wear of volume of losses which was base on abrasion characteristics.
Conform to Standards
- DIN 53516
- ISO 4649
- GB/T 9867
- SATRA
- TM 174
Industry
Rubber, Plastic
Catalog Download
QC-618A DIN Abrasion Tester
Specifications
Sample Size
Diameter 16mm, height 6~16mm
Weight Sets
2.5N、5N(test load 2.5N、5N、7.5N、10N)
Drum
Diameter150 mm, Perimeter 471mm, Rotary speed 40±5%PRM
Sand Paper
#60 or indicated

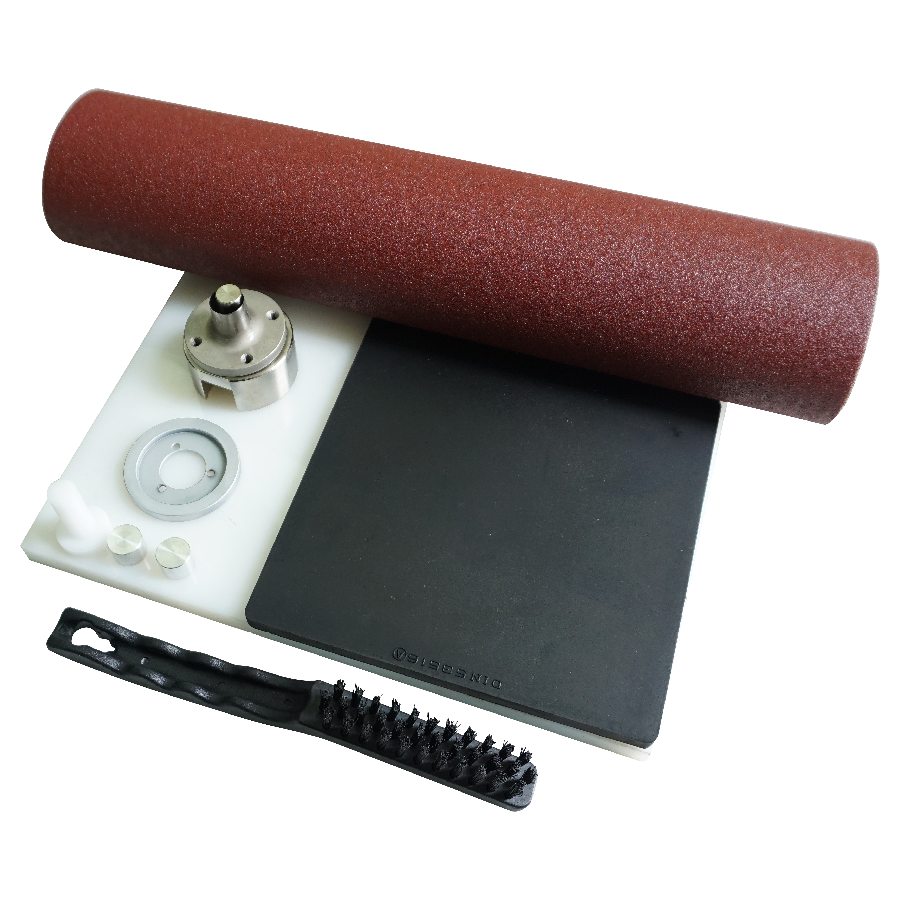

Accessories
Sand paper, standard rubber, specimen cutter, Aluminum pre-rub (1 pc), brass brush (1 pc) and benchtop drill press(1 pc)
Sample Movement
4.2 mm / rev
Stroke
40 m
Sample Tilt Angle
3°
Power
Single phase, 100- 240V
Dimension
81 × 32 × 36 cm
Weight
90 kg
Accessories
Benchtop Drill Press
For cutting standard specimen and standard rubber

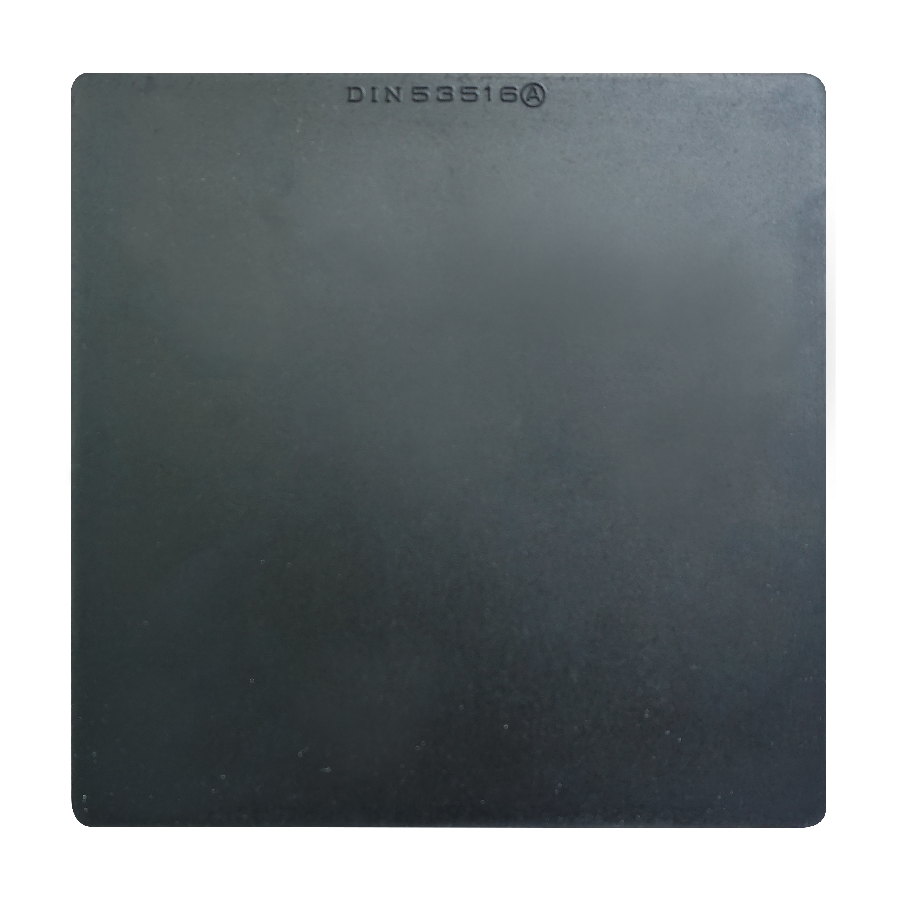

DIN Standard Rubber
Consumable. One piece of DIN standard rubber will be included in package. Additional pieces thereafter can be purchased.

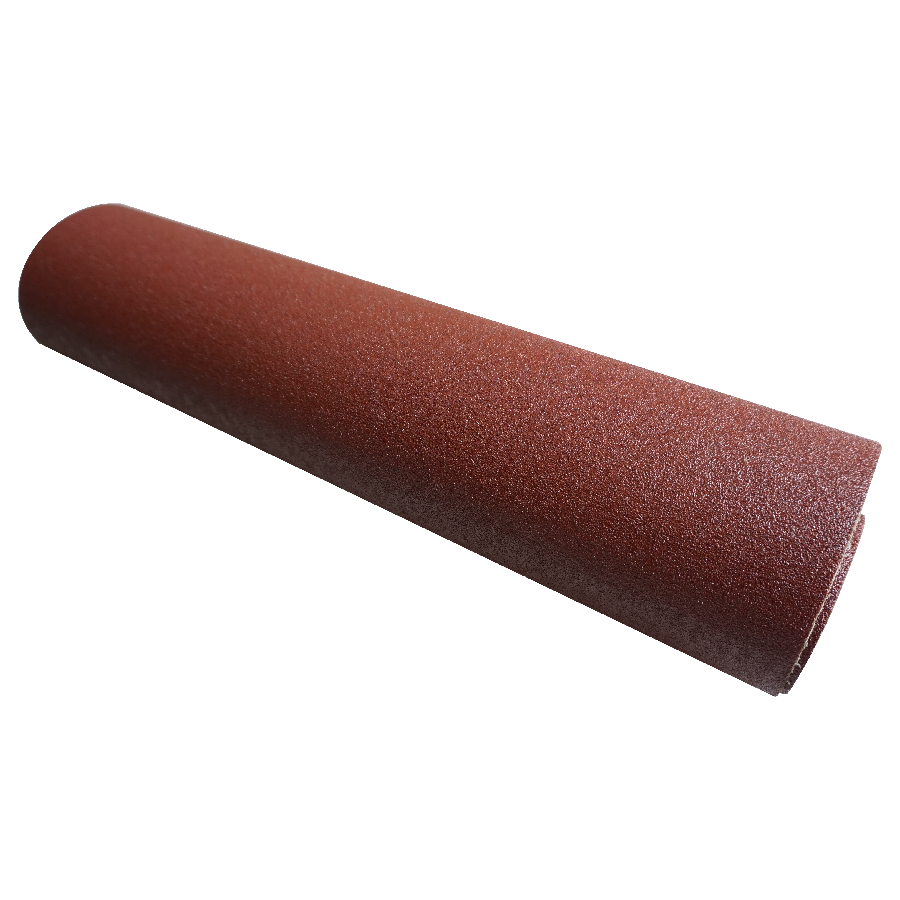

Sand Paper
Consumable. 5 pieces of #60 sand paper will be included in package. Additional pieces thereafter can be purchased.

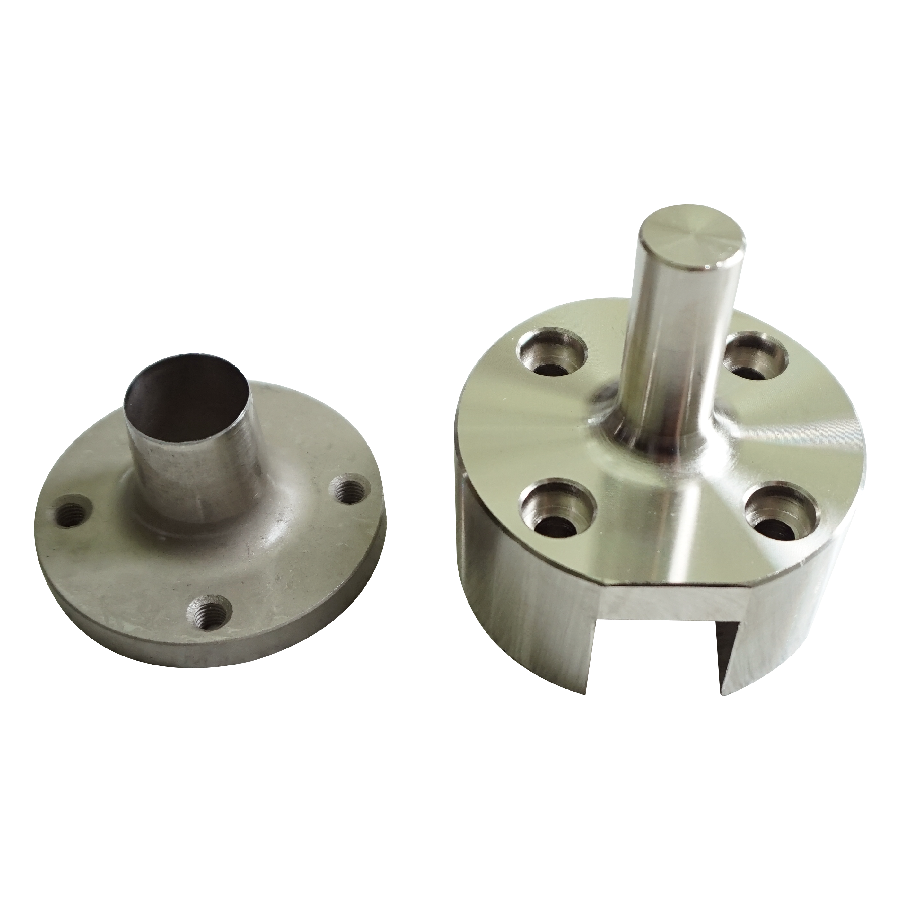

Specimen Cutter
Consumable. One set of specimen cutter will be included in package. Additional pieces thereafter can be purchased.
