Description
-The Rockwell dial with 0.5 HR resolution is adopted to improve the numerical reading accuracy of the instrument.
-Use metal variable load manual wheel to enhance the life of the instrument.
-The body of the instrument is made of cast iron, which makes a strong and durable structure.
-Use oil pump buffer to adjust the loading speed of test force.
Conform to Standards
- GB/T 230.2
- JIS Z2245
- EN ISO6508
- ASTM E18
Industry
Hard ally, Surface hardened stell, Copper alloy, Caburized steel, Hard cast steel, Malleable casting, Annealed steel, Hardened steel, Aluminum alloy, Soft steel, Bearing steel
Application
ASTM D790, ISO 178 Bending test
ASTM D256, ASTM D6110, ASTM E23 ,ISO180, ISO 148, EN10045-1, ISO 179, ISO13802 Pendulum Impact Test
Catalog Download

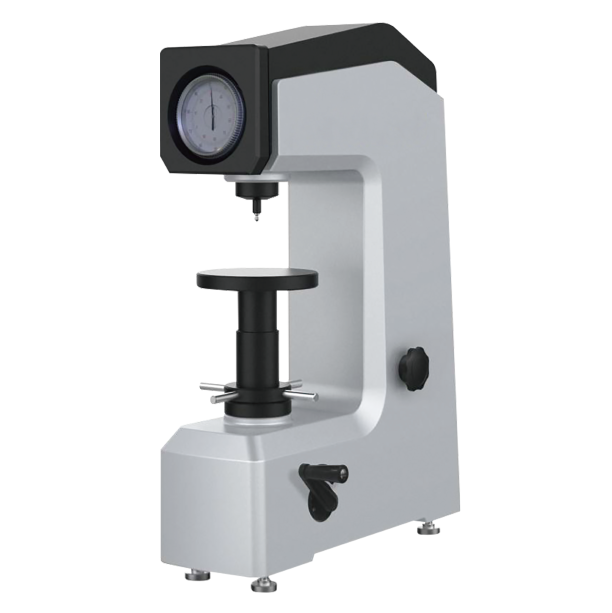

QC-HR150A Manual Rockwell Hardness Tester
Specifications
Preliminary Test Force
10 Kgf (98.1N)
Total Test Force
60 Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scale
HRA, HRB, HRC
Value Display
Rockwell dial
Resolution
0.5HR
Loading Mode
Manual loading / constant / unloading
Language
Chiness, English, German, Portuguese, Turkish, Czech, Korean
Software Correction
-3.0 HR ~+3.0 HR, step value 0.1 HR
Test Space
175mm (max. height); 165mm (depth)
Power Supply
AC 220V/ 50Hz; AC 110V/ 60Hz
Dimension
520 x 215 x 700 mm
Weight
90 Kg
Accessories
Standard Acessories
-Ball Intender: Ø1.588mm steel ball, diamond ball intender
-Test Platform: Ø60mm, Ø200mm, Ø40mm(V-shape)
-Weight: Weight A, Weight B, Weight C
-Standard Hardness Test Piece: HRC(20-33), HRC(57-70), HRB(85-100)
-Other: Tool box
Optional Acessories
-Ball Intender: 1/8", 1/4", 1/2"
-Steel Ball: Ø 1/8", 1/4", 1/2"
